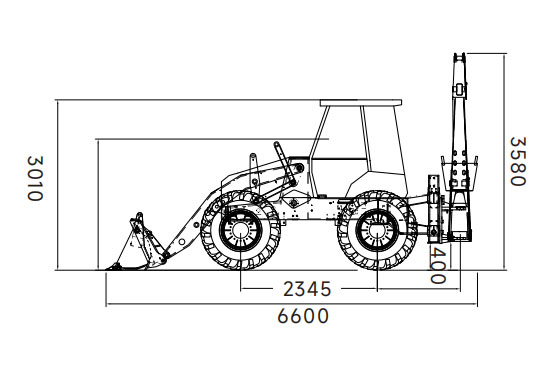

| Shipping Length | 6600mm |
| Total Height During Transportation | 3580mm |
| Overall Width | 2550mm |
| Track Width | 2150mm |
| Wheelbase | 2345mm |

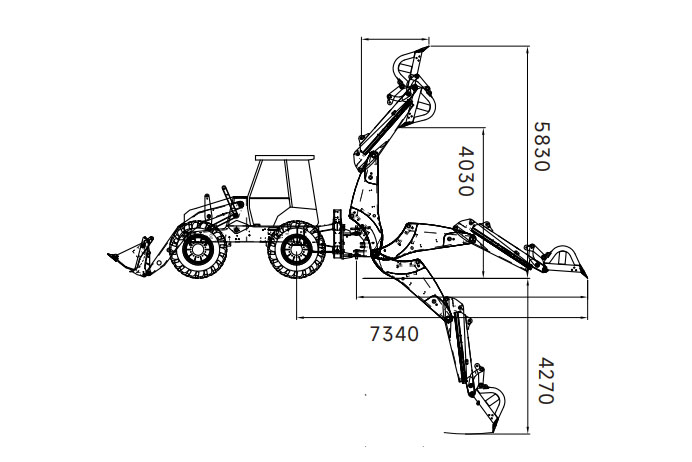

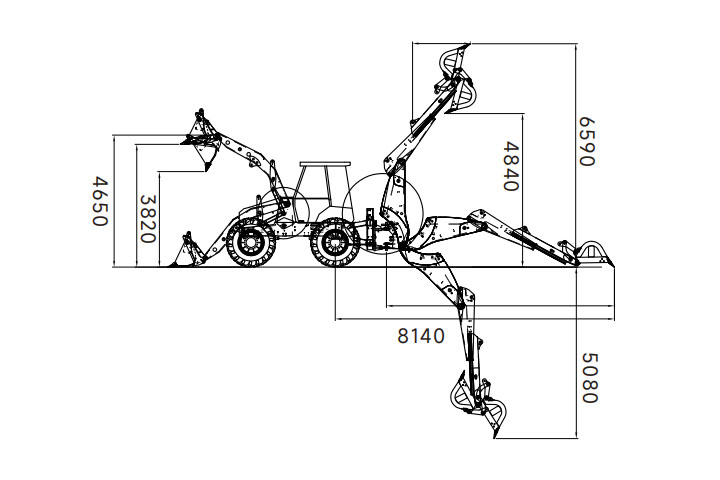

| Maximum Digging Radius | 7340/8140mm |
| Maximum Digging Height | 5830/6590mm |
| Maximum Digging Depth | 4270/5070mm |
| Maximum Unloading Height | 4030/4840mm |
| Bucket Capacity | 1.2m³ |
| Bucket Dumpling Height | 3820mm |
| Bucket Lifting Height | 4650mm |
| Backhoe Capacity | 0.30m³ |
| Breakout Force | 54kN |
| Loading Lifting Capacity | 2500kg |
| Hydraulic System Pressure | 25MPa |
| Hydraulic System Flow Rate | 80mL/r |
| Swing Angle of Excavator Grab | 180° |
| Hydraulic Oil Tank Capacity | 130L |
| Fuel Tank Capacity | 130L |
| Travel Speed | 36km/h |
The machine offers a maximum digging depth ranging from 4270mm to 5070mm depending on the extension setup.
The front loading bucket capacity is 1.2m³, while the rear backhoe capacity is 0.30m³.
This backhoe loader features a maximum travel speed of 36 km/h for quick job site navigation.
The loading lifting capacity is up to 2500kg, backed by a powerful breakout force of 54kN.
The hydraulic system operates at a pressure of 25MPa with a flow rate of 80mL/r and includes a 130L hydraulic oil tank.
