| S/N | Item | Name | Unit | Standard Value |
|---|---|---|---|---|
| 1 | Model | Model | - | YL36-1 |
| 2 | Operating weight | kg | 7500 | |
| 3 | Hopper volume | m³ | 0.23 | |
| 4 | Performance | Walking speed | km/h | 8.4 / 4.6 |
| 5 | Rotation speed | r/min | 10.8 | |
| 6 | Maximum traction | kN | 50.2 | |
| 7 | Bucket digging force | kN | 45.5 | |
| 8 | Boom digging force | kN | 28.5 | |
| 9 | Engine | Engine manufacturers | - | Weichai |
| 10 | Engine model | - | WP3.2G50E430 | |
| 11 | Rated power/speed | kw/rpm | 36.8 / 2200 | |
| 12 | Displacement | L | 3.17 | |
| 13 | Emission standards | - | Euro IV | |
| 14 | Overall Dimensions | Total length | mm | 6750 |
| 15 | Total width | mm | 2000 | |
| 16 | Total height | mm | 2850 | |
| 17 | Rear wheel diameter | mm | 1022 | |
| 18 | Front wheel diameter | mm | 830 | |
| 19 | Scope of Work | Max. digging distance | mm | 6160 |
| 20 | Max. digging depth | mm | 3850 | |
| 21 | Max. digging height | mm | 6790 | |
| 22 | Max. unloading height | mm | 4980 | |
| 23 | Obstacle Surmounting Ability | Obstacle crossing height | mm | 1900 |
| 24 | Wading depth | mm | 1700 | |
| 25 | Spanning width | mm | 3200 | |
| 26 | Operation Slope | ° | 45 | |
| 27 | Wireless Remote Control | Remote control distance | m | 500 |

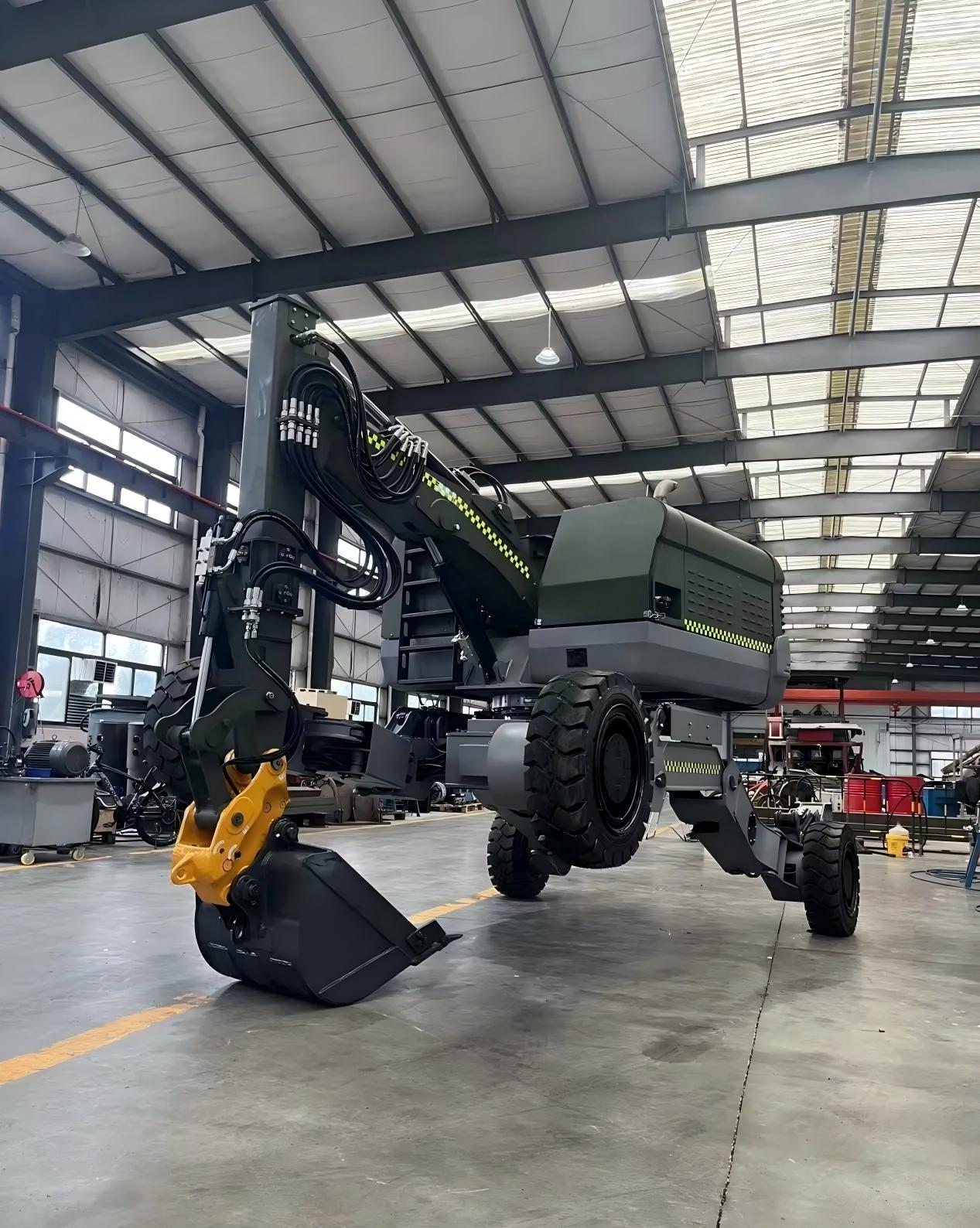

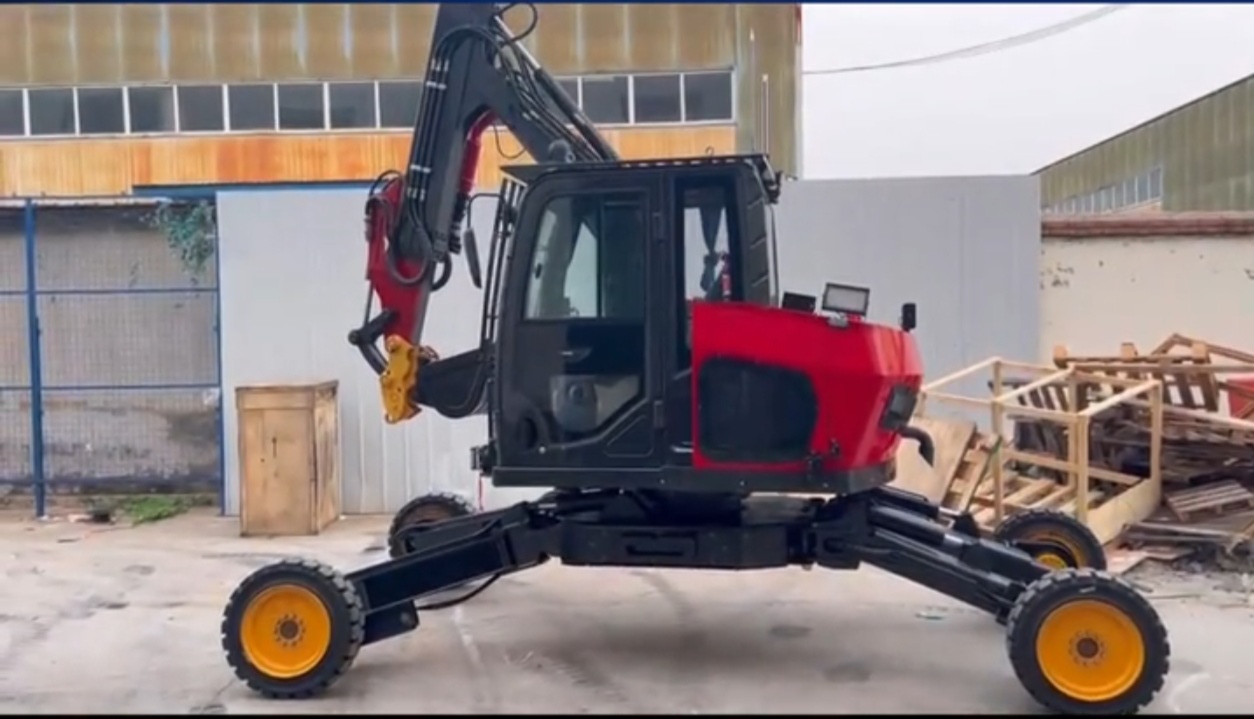

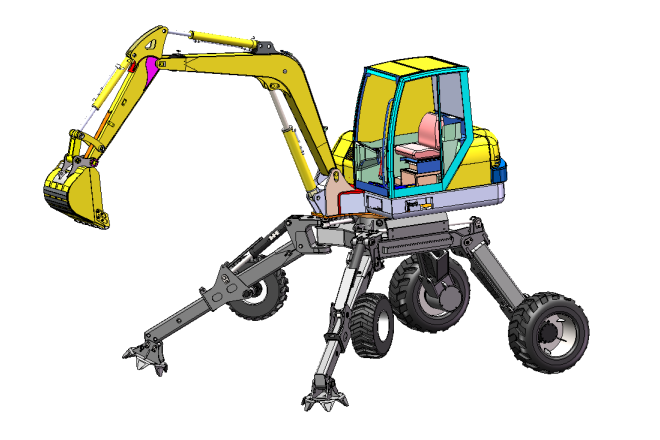

The YL36-1 is powered by a Weichai WP3.2G50E430 engine, featuring a 4-stroke inline water-cooled system with a rated power output of 36.8 kW at 2200 rpm, compliant with Euro IV emission standards.
The machine has an operating weight of 7500 kg, a max digging distance of 6160 mm, a max digging depth of 3850 mm, and delivers a bucket digging force of 45.5 kN alongside a boom digging force of 28.5 kN.
The integrated wireless remote control system supports operational distances up to 500 meters, ensuring enhanced safety and flexibility during complex job site operations.
It features an impressive obstacle crossing height of 1900 mm, a wading depth of 1700 mm, a spanning width of 3200 mm, and is capable of operating on slopes up to 45°.
It utilizes a high-efficiency swashplate variable displacement piston pump with a maximum flow of 154.8 L/min and an overflow valve setting of 28 MPa, driving working oil pressure up to 24.8 MPa.
