Technical Parameter |
Unit |
ST1200 Specification |
Model |
ST1200 |
|
Weight |
||
Operating weight |
kg |
1200 |
Static line load |
N/cm |
56/77 |
Dimensions & Size |
||
Working width |
mm |
825 |
Overall length |
mm |
1870 / 1780 |
Overall height |
mm |
1450 / 1985 |
Outside turning radius |
mm |
2600 |
Drum width |
mm |
700 |
Drum diameter |
mm |
500 |
Wheelbase |
mm |
1230 |
Engine & Drive System |
||
Engine model |
- |
186F |
Engine type |
- |
Single Cylinder, Vertical, Air-Cooling, Four-Stroke Diesel Engine |
Number of cylinders |
- |
1 |
Output Power |
kW |
6 |
Rotating speed |
rpm |
3600 |
Electrical Equipment |
V |
12 |
Drive mode |
- |
Variable displacement piston pump, infinitely variable two-wheel series |
Walking Characteristics |
||
Speed |
km/h |
0 – 6 |
Theoretical climbing ability |
% |
30 |
Brake System |
||
Working brake |
- |
Variable displacement piston pump |
Steering System |
||
Steering method |
- |
Hydraulic steering |
Steering system structure |
- |
Swing articulated |
Vibration System |
||
Vibrating drum location |
- |
Front |
Drive form |
- |
Mechanical transmission with electromagnetic clutch |
Vibration frequency |
Hz |
70 |
Vibration amplitude |
mm |
0.5 |
Exciting force |
kN |
25 |
Sprinkler System |
||
System form |
- |
Intermittent pressure spray |
Fluid Capacity |
||
Hydraulic oil capacity |
L |
15 |
Fuel capacity |
L |
6.5 |
Water tank capacity |
L |
70 |

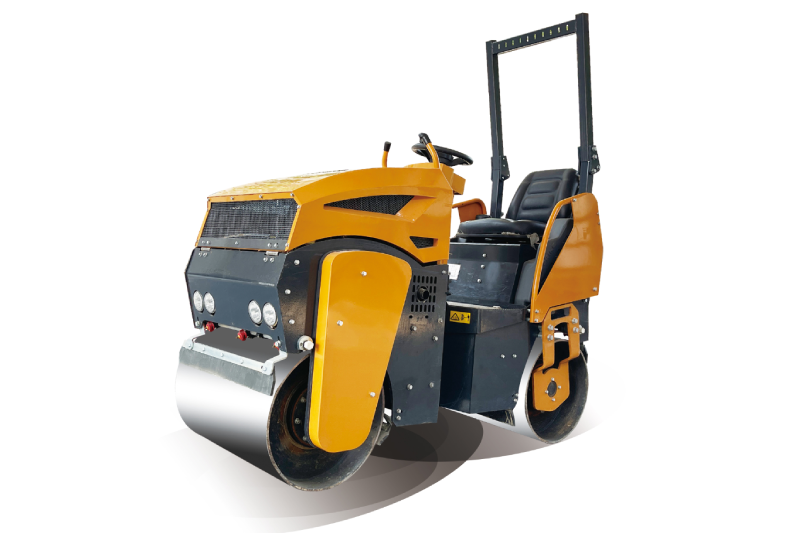

What is the operating weight of the ST1200 road roller?
The ST1200 road roller has an operating weight of 1,200 kg with a static line load of 56/77 N/cm, making it suitable for compacting tasks in small-scale paving or confined work areas.
What engine is used in the ST1200, and what is its power output?
The ST1200 is powered by a 186F single-cylinder, vertical, air-cooled, four-stroke diesel engine that generates an output power of 6 kW at 3,600 rpm.
What is the working width and drum size of the ST1200?
The ST1200 features a working width of 825 mm, a drum width of 700 mm, and a drum diameter of 500 mm, making it ideal for narrow pathways, sidewalks, and trench compaction.
How does the ST1200 handle steering and turning?
The ST1200 utilizes a hydraulic steering system combined with a swing articulated structure. Its turning radius outside is 2,600 mm, ensuring smooth maneuverability in tight spaces.
What are the vibration specifications of the ST1200?
The ST1200 features a front vibrating drum with a vibration frequency of 70 Hz, an amplitude of 0.5 mm, and an exciting force of 25 kN, driven via mechanical transmission with an electromagnetic clutch.
What are the fluid capacities of the ST1200?
The equipment comes with a 15 L hydraulic oil tank, a 6.5 L fuel tank, and a 70 L water tank for its intermittent pressure sprinkler system, supporting long continuous operating periods.
