China Cold In-Place Recycler (CIPR)for Road Construction Manufacturer, Suppliers

Cold In-Place Recycling (CIPR) is an asphalt pavement rehabilitation technique that reduces the life cycle cost of the pavement structure by reusing the existing aggregates and asphalt materials. The cold nature of the process reduces the impact on the environment and preserves energy due to the absence of heat application.

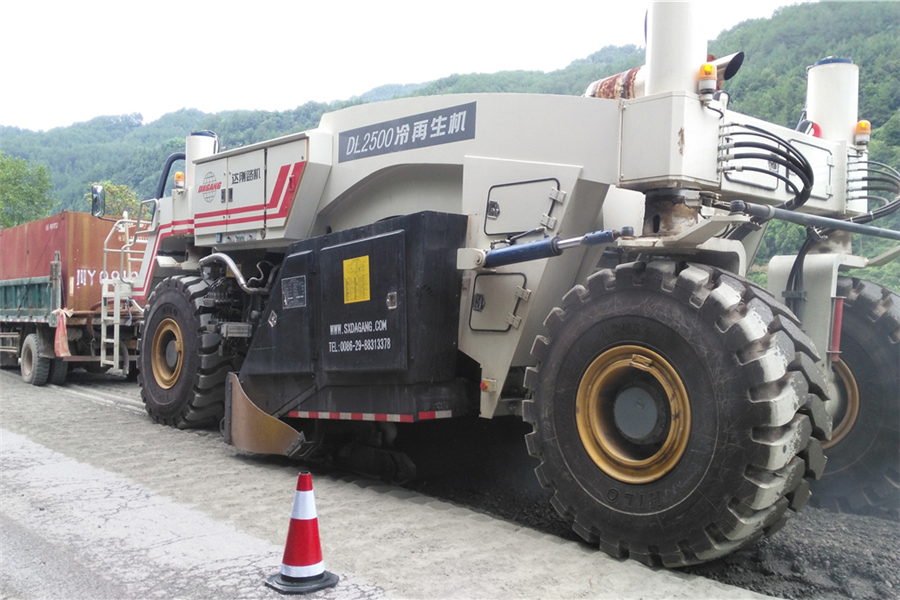

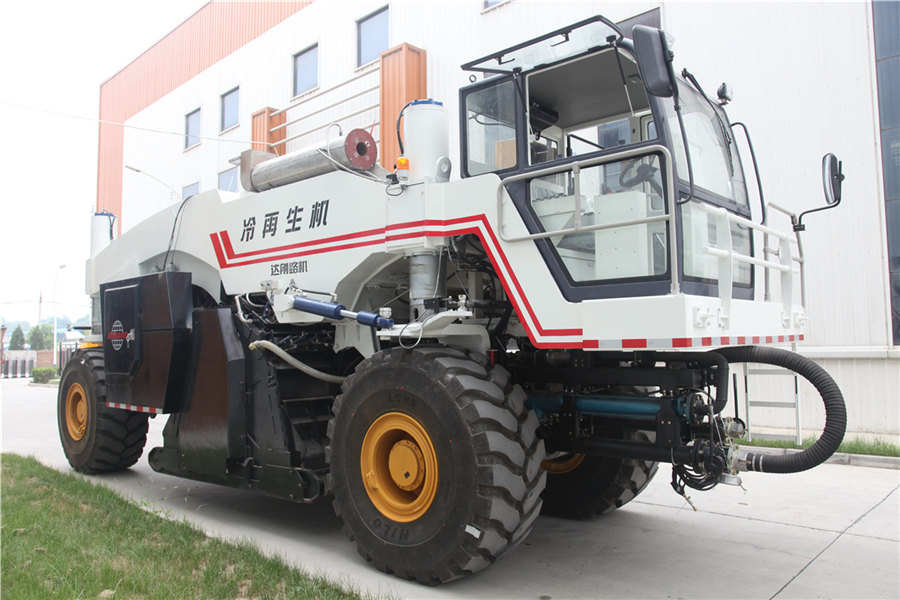

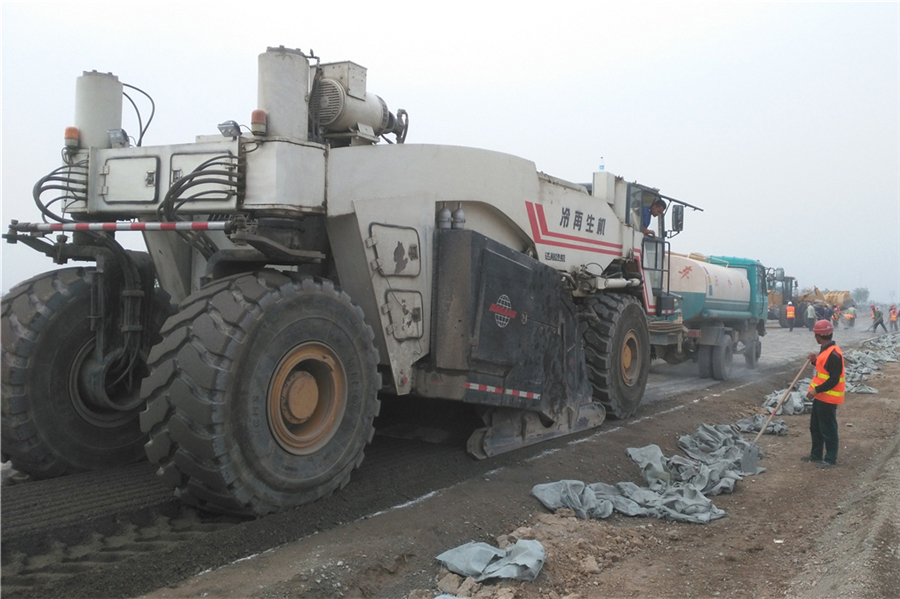

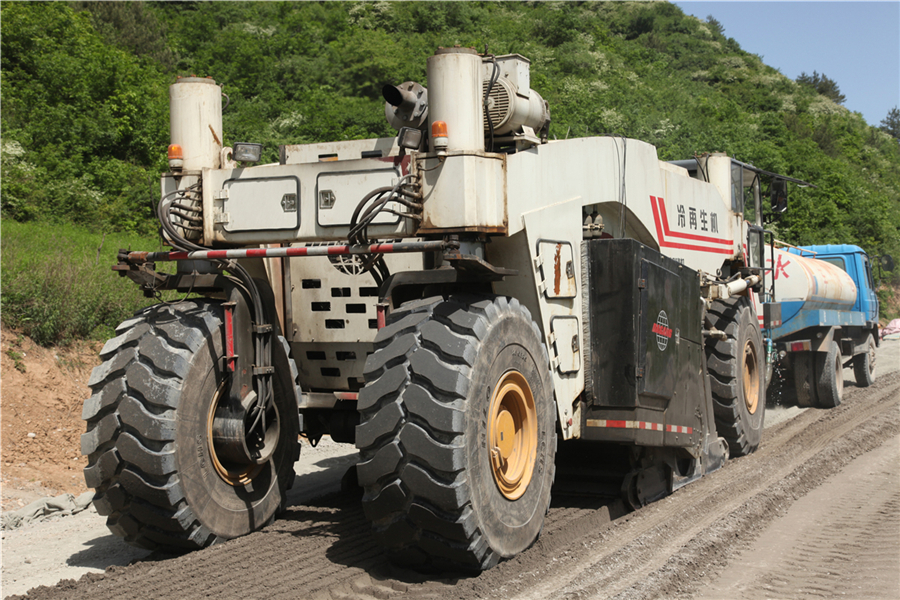

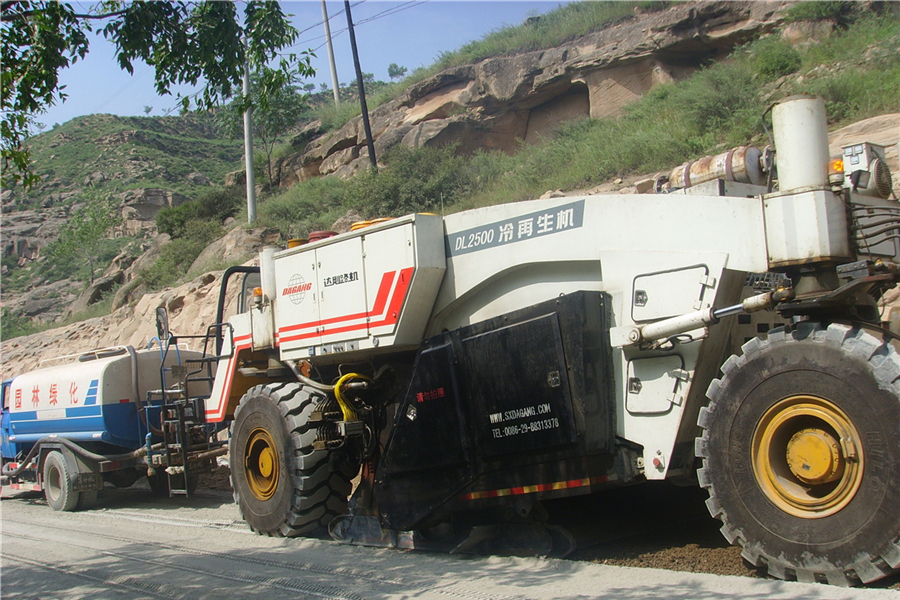

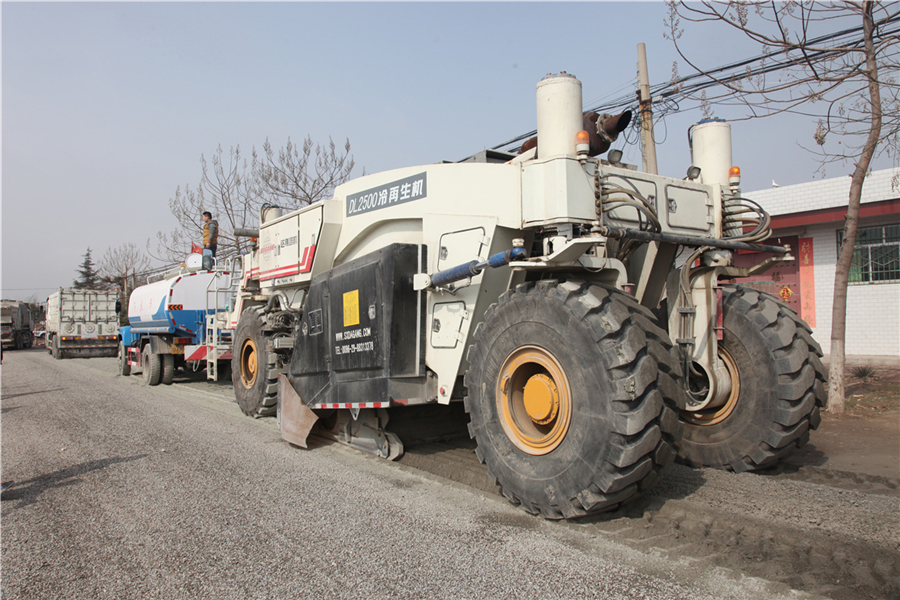

Our Cold In-place Recycler was specially designed for CIPR pavement rehabilitation. When cold recycling in-situ, the cold recycler mills and granulates the existing pavement material while homogeneously mixing in binding agents and water at the same time. It produces a new construction material mix in just one single machine pass. The Cold recyclers are equipped with powerful milling and mixing rotors and with highly efficient injection systems. This method produces a base layers of high bearing capacity.

Product Description

Key Features

It is a bright spot of full depth cold in-place recycling technology in the development of the renewable technology on asphalt pavements in the recent ten years. It is developed on the basis of road mixing technology, mainly used for the reconstruction of road base. Full depth cold in-place recycling is the most used in-place recycling technology presently.
It realized the cold in-place recycling and usage of materials on old asphalt pavement and base course. Therefore, the cost and time for materials transporting can be reduced greatly. It is also energy saving and low pollution during the process of construction.
It is used for rehabilitation, upgrading, and reconstruction of the severely distressed asphalt pavement of second and third grade highways; establishes a practical quality control system when used on highways; renewed materials can be used for the base course of asphalt pavement and the under layer of roads with low traffic volume.
Can be used for the surface renovation of general rural roads, in which slurry, chip seal, and micro surfacing should be applied to make the upper sealing layer.
It is applicable for the reconstruction of the entire pavement; applicable for the reinforced rebuilt work on base course; and typically applicable for the upgrading and reconstruction of roads at low grade.

Technical Parameters

Milling System Max. Milling Width (mm) 2500 Theoretical Speed (m/min) High Speed I Gear 0 to 60
Max. Milling Depth (mm) 400 II Gear 0 to 165
Cutter Nos. 212 Low Speed First Gear 0 to 15
Rotor Dia. (mm) 1480 Second Gear 0 to 40
Engine Brand COMMINS Rotor Speed (r/min) I Gear 90
Model KTTA19-C700 II Gear 95
Cylinder Nos. 6 cylinders III Gear 105
Rated Power (kW) 522 IV Gear 122
Rated Speed (r/min) 2100 V Gear 150
Weight Gross Weight (kg) 40000 Tire Type LCHS drive
Front Axle Weight (kg) 21000 Size 26.5R25
Rear Axle Weight (kg) 19000 Tank Capacity (L) Fuel Tank 1500
Total Weight (kg) 42000 Hydraulic Tank 350
Voltage Control System (V) 24 Water Tank 780
Asphalt Heating System (V) 220 Overall Dimensions (L×W×H)(m) 9.45×3.2×3.25

Delivery And Service

Frequently Asked Questions

What is Cold In-Place Recycling (CIR) technology?

Cold In-Place Recycling is an eco-friendly road rehabilitation method that reuses existing asphalt pavement and base materials on-site without applying heat, significantly reducing transportation and material costs.

What engine powers this recycler equipment?

The machine is powered by a CUMMINS KTTA19-C700 6-cylinder engine with a rated power output of 522 kW at 2100 r/min.

What are the maximum milling parameters of this machine?

This equipment features a maximum milling width of 2500 mm, a maximum milling depth of 400 mm, a rotor diameter of 1480 mm, and is equipped with 212 cutters.

Where can this cold in-place recycler be applied?

It is suitable for the reconstruction of full road bases, rehabilitation of distressed 2nd and 3rd-grade highways, surface renovation of rural roads, and base course strengthening work.

What are the fluid capacities of the tanks on this equipment?

The machine features a 1500 L fuel tank capacity, a 350 L hydraulic oil tank capacity, and a 780 L water tank capacity to support long operating cycles.
