The DT series of bitumen decanting equipment developed and produced by our company,which is mainly used for decanting and heating of barreled asphalt, bearing the functions of dehydration and automatic slag cleaning.Forklift and a hydraulic bucket turning device cooperated together to place the bucket on the platform, and pushes the bucket one by one to the back in turn until it is pushed out at the back end.The outer wall of the main body will be heated by thermal oi pipes through radiation. After the half-melted blocks enters into the main chamber, the flue pipe will heating bitumen directly for heat exchange. Then after the liquid bitumen reaches to certain temperature and the viscosity is satisfied for pumping, it can be pumped out for usage.

Product Description

Product Characters

1
The barrel turning upside down and feeding are completed at one time within 30 s for one single barrel. The mechanical turning of the oil barrel greatly reduces the labor intensity of the workers.
2

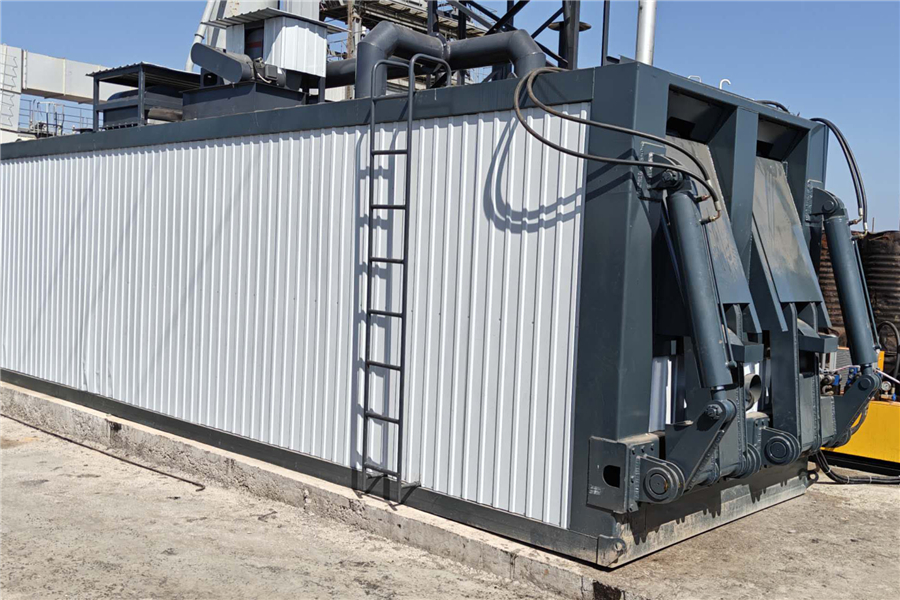

Supported by forklift to place the barrel on the barrel turning device; the device will turn the bitumen barrel over along with the downward movement of the two-way hydraulic cylinder; Then the upward movement will help to push the barrel into the barrel heating chamber.
3
The outer wall of main body is heated by thermal oil through pipes radiation. The flowing of hot air will help to heating the barrel.
4
The drums will be placed on to bucket and then be pushed with bucket one by one to the back in turn until it is out at the back end.
5
The direct heating of flue pipeline makes the heat exchange of high efficiency.
6
The pump set has an internal circulation function to improve the melting speed, and the fan is used to heat circulating air to strengthen the heat transfer coefficient.
7
Electrical operating system adopts manual and automatic two methods.

Main Performance Parameter

Parameters Unit Standard Value
Productivity T/h 8–10
Tempt. of Bitumen 120~140
Number of Drums No 44
Thermal oil Tempt. 200-240
Total Power Kw 25
Bitumen pool Ton 17
Heating by Kcal 60*10 (Thermal oil furnace 4)
Total weight of main body Kg 13000
Dimensions of Main body mm 11500×2600×2500
Dimensions of Thermal oil furnace mm 8200*2250*2550
Weight of Thermal oil furnace Kg 6000

Delivery And Service

Frequently Asked Questions

What is the productivity rate of this bitumen decanter?

The standard productivity rate of the equipment is between 8 to 10 tons per hour (T/h), with a drum capacity of up to 44 drums.

How long does it take to turn and feed a single barrel?

The turning upside down and feeding process for one single barrel is efficiently completed within 30 seconds.

What heating methods are utilized in this equipment?

Heating is achieved through thermal oil pipe radiation, hot air circulation, and direct flue pipeline heating to ensure high heat exchange efficiency.

What control options does the electrical operating system offer?

The electrical operating system is versatile, featuring both manual and automatic control modes.

What are the dimensions and total weight of the equipment?

The main body dimensions are 11500×2600×2500 mm with a weight of 13000 kg. The thermal oil furnace dimensions are 8200*2250*2550 mm with a weight of 6000 kg.
