OEM DK1800 Road Widener / Road Shoulder Paver Suppliers, Factory

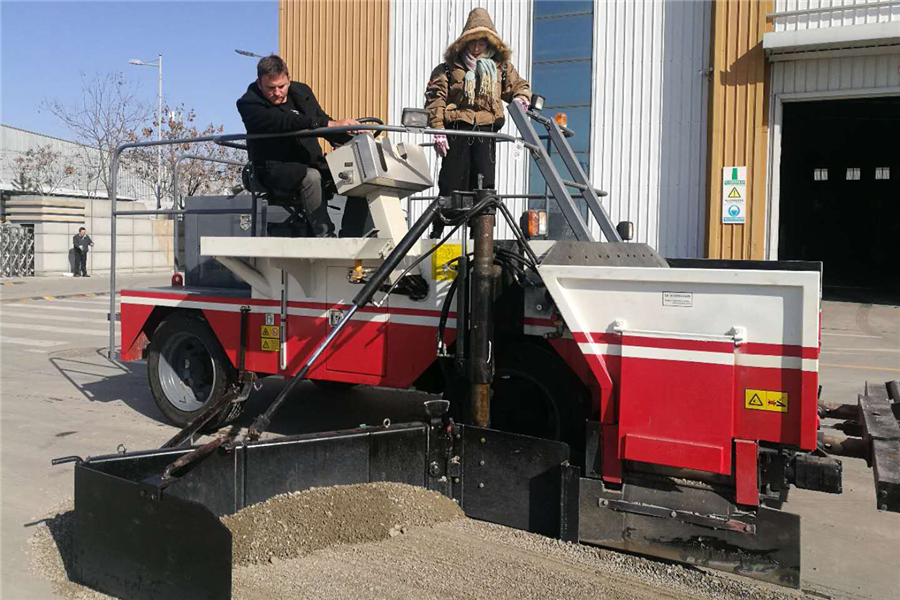

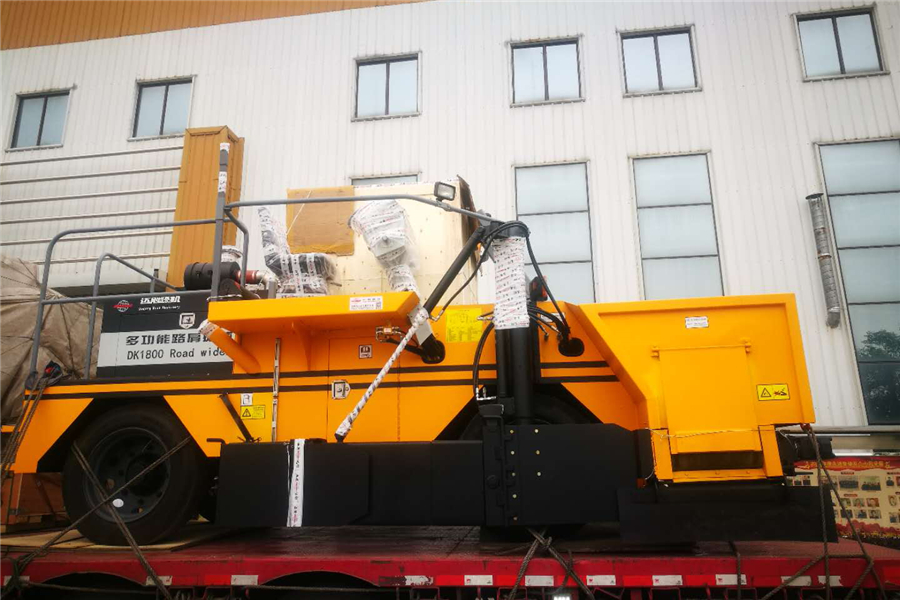

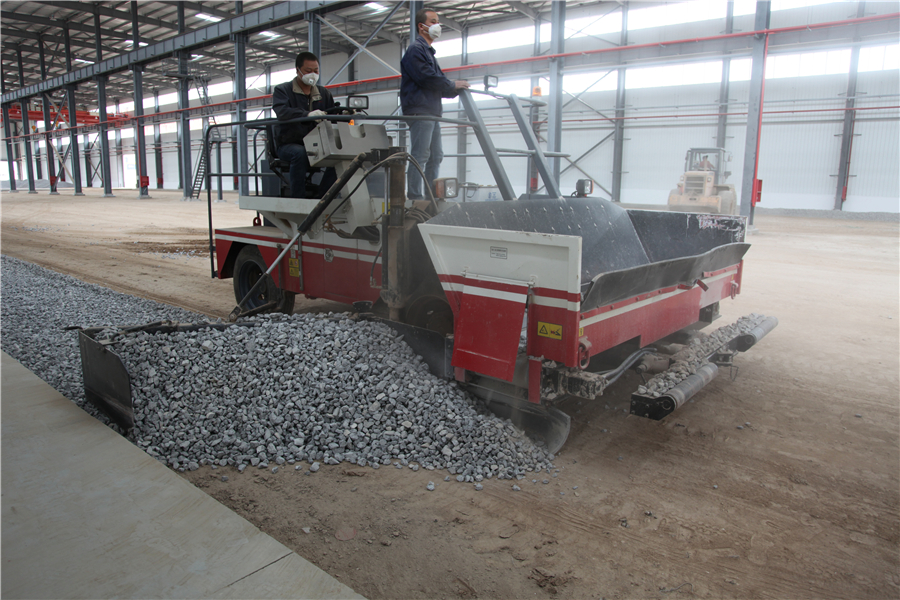

DK1800 Multifunctional Road Widener, a kind of specially designed side paver, is mainly used for base materials and asphalt mixture to widen the existed low-graded asphalt pavement, township roads and village road. The optional road shoulder components are used for filling into the earth shoulder and median strip on the new or upgraded construction road.

Send Inquiry

Product Description

Features

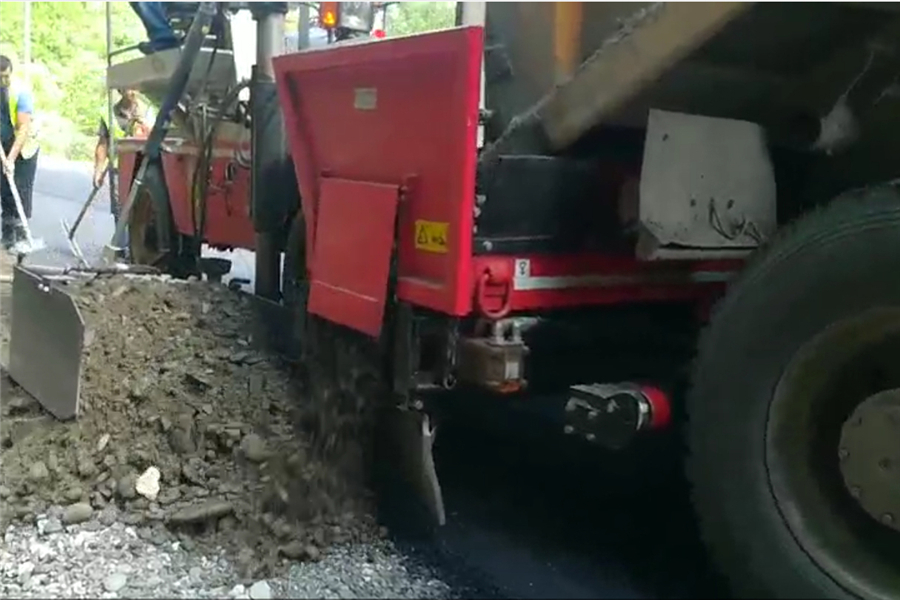

Can be used road paving work with clay, gravel, and asphalt mixtures.

Strong power and reliable steering mechanism enabled the truck to working on potful and rutting roads.

The conveyor capacity of belt can be adjusted continuously to meet different width requirements.

The paving width can be stepless adjustable during construction to quickly adapt to the changes of road width.

The height and depth of scraper is adjustable, which can be used for construction outside of kerbstone and suitable for various construction conditions.

The angle of scraper mechanism is adjustable and can be applied for road constriction of different arch.

The optional working device can be replaced quickly to meet for different construction requirement.

Two-shift transmission is designed in the driving system, which enabled the flexible adjusting between working speed and driving speed.

Full hydraulic steering system is of great flexible.

Static hydraulic brake and drive axle built-in brakes ensured the safety and reliability of braking system.

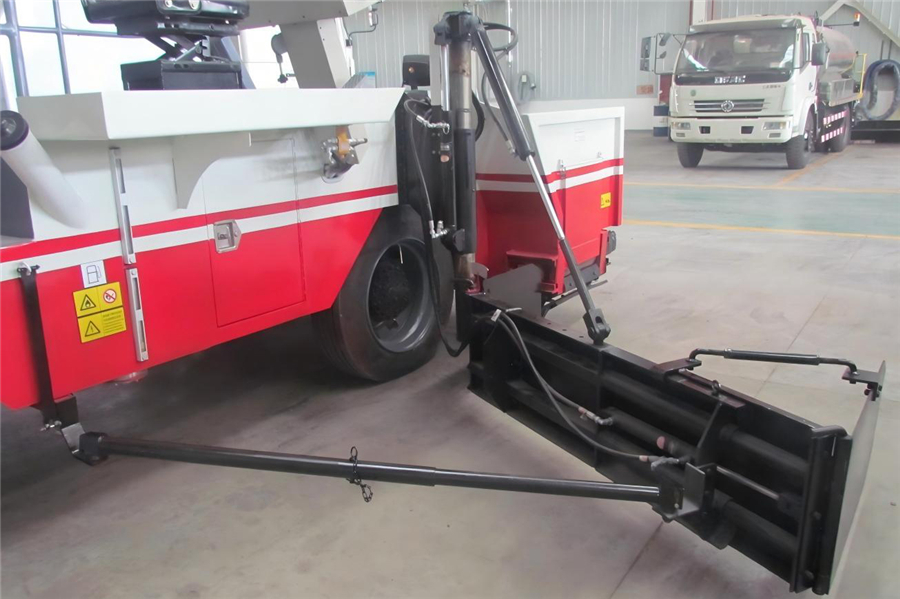

Telescopic push roller can match with a variety of dump trucks.

Side-sited control console with open eye shot improved the operation safety.

Less labor required to reduce the construction cost.

Technical Parameters

Model	DK1800
Function	Widener Function	Shoulder Function
Max. Working Height (mm)	250	150~400
Max. Working Depth (mm)	150	-
Working Width (mm)	400~1800	720~1000
Conveyor Max Productivity (t/h)	300
Push Roller Extendable Distance (mm)	450
Hopper Capacity (m³)	1.8
Max. Working Speed (km/h)	3
Max. Travel Speed (km/h)	13.5
Approach Angle (°)	10
Engine Model/power (kW)	QSF2.8/53
Total Weight (kg)	7150
Overall Dimensions (L×W×H) (mm)	5530×3000×2520

Delivery And Service

Frequently Asked Questions

What materials can the DK1800 Road Widener process?

The DK1800 road widener is highly versatile and can be used for road paving work with clay, gravel, and asphalt mixtures efficiently across various job sites.

What are the working width options for the DK1800?

The machine features stepless adjustable working widths ranging from 400mm to 1800mm for standard road widening operations, and 720mm to 1000mm when configured for shoulder work.

How does the push roller system accommodate different dump trucks?

The DK1800 is equipped with a telescopic push roller with an extendable distance of up to 450 mm, allowing seamless compatibility with a wide variety of dump truck models.

What engine powers the DK1800 and what is its maximum speed?

It is powered by a QSF2.8 engine rated at 53 kW. The driving system features a two-shift transmission that supports a maximum working speed of 3 km/h and a travel speed of up to 13.5 km/h.

What safety features are incorporated into the machine's design?

The machine features a full hydraulic steering system, static hydraulic brake combined with drive axle built-in brakes, and a side-sited control console providing an unobstructed line of sight to enhance job site safety.
