OEM Multi-functional Slip-Form Paver for Road Construction Manufacturer, Factory

The multi-functional slipform paver is a versatile cement concrete construction equipment independently developed by our company. It is multi-purpose, capable of various mold configurations, and widely used in the construction of road drainage ditches, drainage channels, curbs, shoulder stones, concrete guardrails, cement concrete structures, and farmland irrigation canals. It replaces traditional processes, significantly improving the construction quality and speed of cement concrete structures.

This machine boasts high power reserve, fully electronic control, full hydraulic power drive, proportional control, three-track walking, and is equipped with an automatic steering and automatic leveling control system. It completes the vibration, paving, and extrusion molding processes of cement concrete structures in one operation.

Product Description

Key Features

1. Multi-functional Capability

By changing various molds and precisely adjusting and controlling the vehicle's status, it can accurately slipform pave roads, drainage ditches, curbs, shoulders, concrete guardrails, and farmland irrigation canals.

2. Three-Track Walking System

Hydraulically independent drive, proportional control dual-speed motor, high-ratio planetary gear reducer, closed-loop control of paving speed, and PID adjustment ensure paving speed stability. Displacement sensors enable crab-like walking and small-radius turning.

3. Powerful & Efficient Engine

Meets National Stage III emission standards. The hydraulic system utilizes load-sensitive variable control, supplying oil according to actual load and speed, resulting in low fuel consumption and high energy savings.

4. User-Friendly Control Panel

Human-machine interface screen with clear graphical symbols makes operation simple. Equipped with an IoT platform, construction management, monitoring system, and optional remote control device.

5. Precision Steering & Lifting

Employs hydraulic proportional control equipped with two longitudinal slope sensors, one cross slope sensor, and two steering sensors communicating via CAN bus for precise linear control and superimposed paving.

6. Flexible Paving & Conveying

Achieves right-side and center-mounted paving. Outriggers and mold fixing devices feature hydraulic adjustments for quick replacement. The auger conveying device swing, tilt, and extension are adjustable with ample space for secondary mixing.

Technical Parameters

Engine Brand Cummins
Model 4BTAA3.9-C130 QSB3.9-C130 Cummins QSF3.8
Rated Power 97KW/2500RPM 97KW/2300RPM 104kW/2200rpm
Inhale Mode Turbocharged / Air-cooled
Displacement 3.9L 3.9L 3.8L
Control Mode Non-EFI EFI EFI
Min. Fuel Consumption 205g/kwh 198g/kwh -
Walking System Crawler 3 (Front 2 / Rear 1) continuously variable gear
Paving Speed 0-15m/min 0-15m/min
Walking Speed 0-1.4km/h 0-30m/min
Steering Mode Front wheel, rear wheel, full wheel, crab row, synergy
Profiling Mode Front/rear/all-wheel automatic guidance
Height Adjustment Outriggers 3 strips, hydraulic lifting
Mode of Operation 3 legs independently / simultaneously lifted
Leg Lifting Height 1m
Control Mode Electro-hydraulic proportional control
Leveling Method Front and rear height automatic control / cross slope control
Screw Conveyor Blade φ420, 30pc
Control Mode Closed system, stepless adjustment, forward/reverse
Attitude Adjustment Shifting / telescopic / elevation / swing
Max. Feed Volume 50m³/h
Vibrator Brand American Minich
Drive Mode Hydraulic actuation, frequency proportional adjustment
Quantity 3 pieces of standard configuration, 3 interfaces reserved
Concrete Mold Location Left / Right
Max. Mold Height 1200 / 1300mm
Max. Mold Width 1300 / 1500mm
Forming Molds Interchangeable, customized according to engineering requirements
Shift / Lift 800/1000mm / 400/500mm
Formed Seal Hydraulic cylinder, 4 pieces
Electrical Performance Voltage DC24V
Storage Battery 2 pcs, 120Ah
Controller Imported
Guide / Level Sensor Imported
Parameter Display Color LCD touch screen
Volume Capacities Diesel Tank 120 / 200L
Hydraulic Tank 190 / 280L
Water Tank 120 / 500L
Shipping Parameters Dimensions (H x L x W) Height: 3.2/3.4M | Length: 6.5/6.9M | Width: 2.5M
Weight 13 Tons

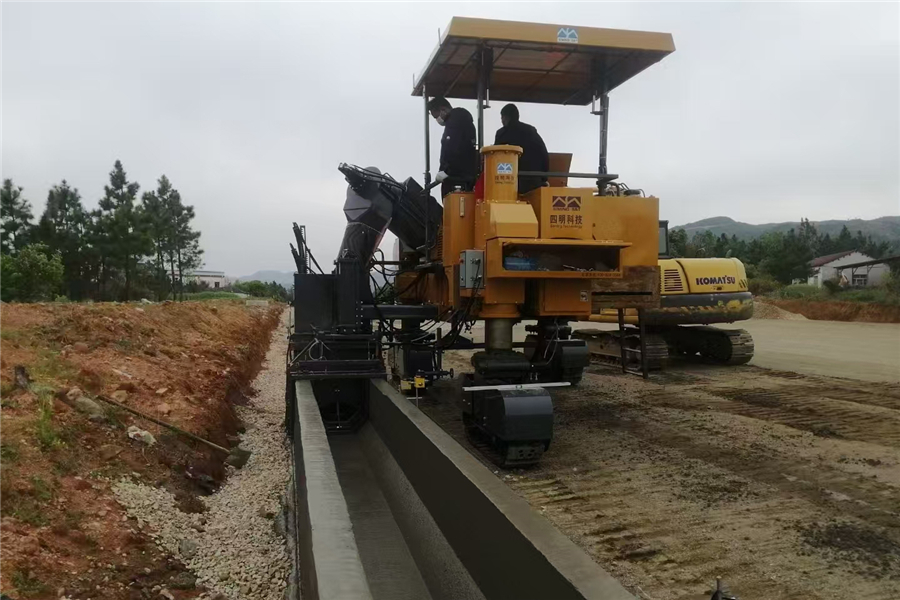

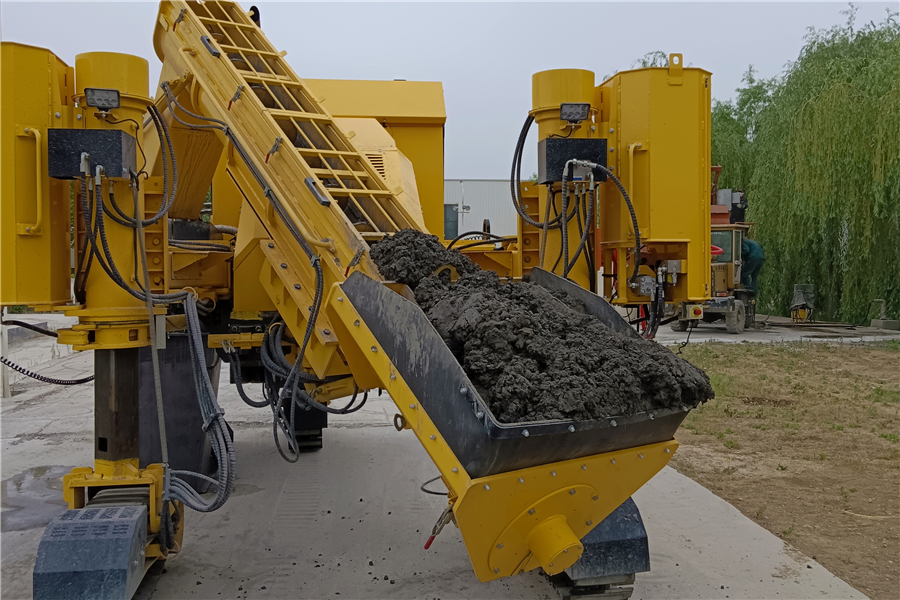

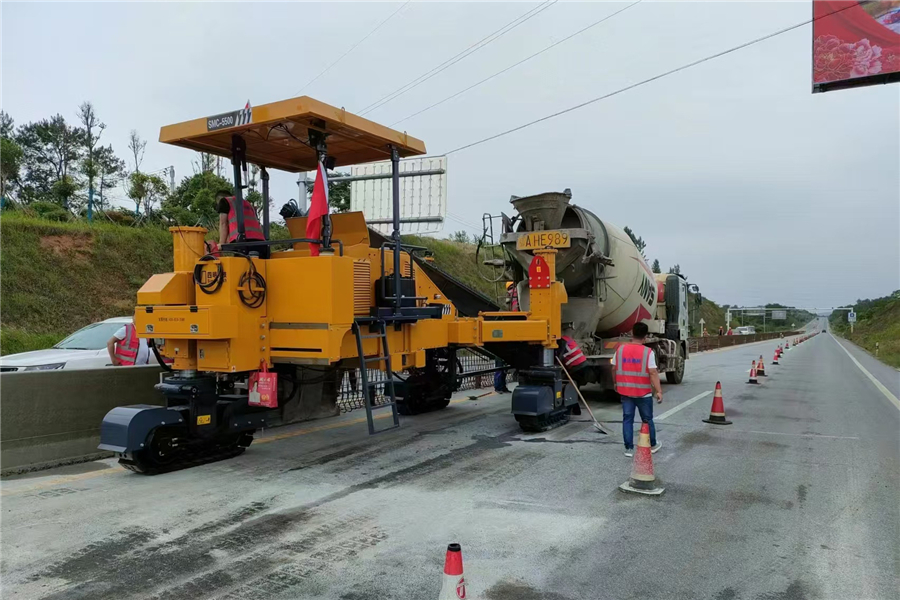

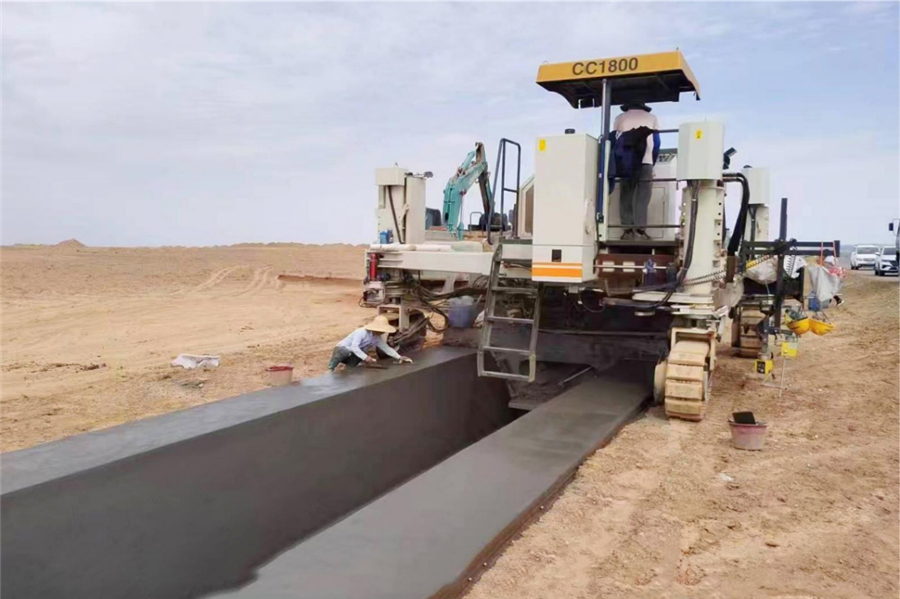

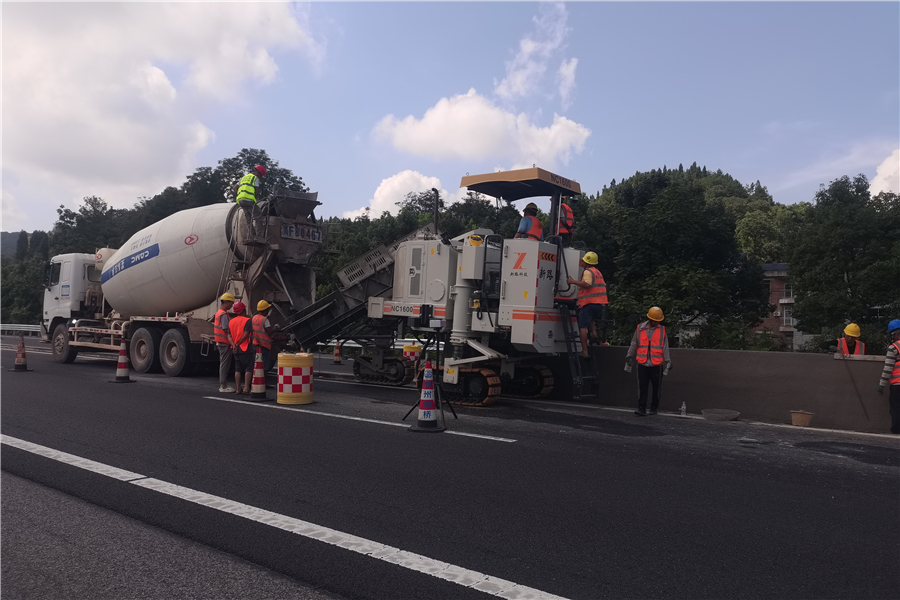

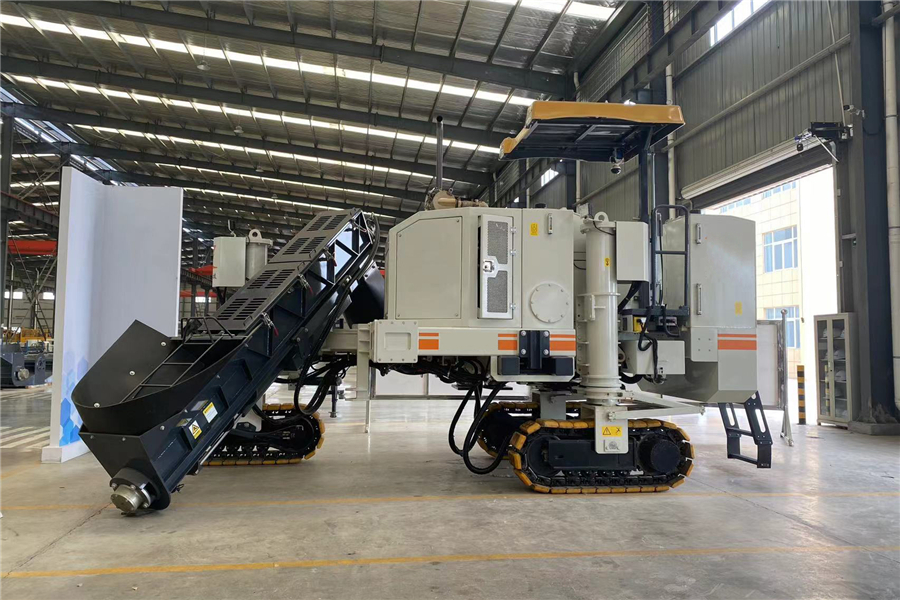

Delivery & Product Gallery

Frequently Asked Questions (FAQ)

What specific structures can this multi-functional slip-form paver construct?

By changing different specialized molds, the paver can accurately form concrete roads, drainage ditches, road curbs, shoulders, concrete guardrails, and farmland irrigation canals.

How does the three-track walking system improve paving performance?

It utilizes independent hydraulic drives and closed-loop PID control to maintain consistent speed. Integrated displacement sensors allow crab-like movement and a small turning radius for fast positioning.

What level control system does the equipment use for elevation accuracy?

The machine features electro-hydraulic proportional control with two longitudinal slope sensors, one cross slope sensor, and two steering sensors communicating via CAN bus for automated precision leveling.

Are the concrete molds customizable for custom construction projects?

Yes, forming molds are fully interchangeable and can be customized according to specific engineering requirements and dimensions.

What engine configurations and fuel efficiency systems are incorporated?

It features high-performance Cummins engines meeting National Stage III emission standards, equipped with load-sensitive hydraulic control to minimize fuel consumption based on real-time loads.

What are the dimensions and weight for shipping and transport?

The shipping dimensions range from 6.5M to 6.9M in length, 2.5M in width, and 3.2M to 3.4M in height, with a total equipment weight of 13 Tons.
