OEM Road Marking Machine / Road Marker / Road Line Painting Machine Factories, Factory

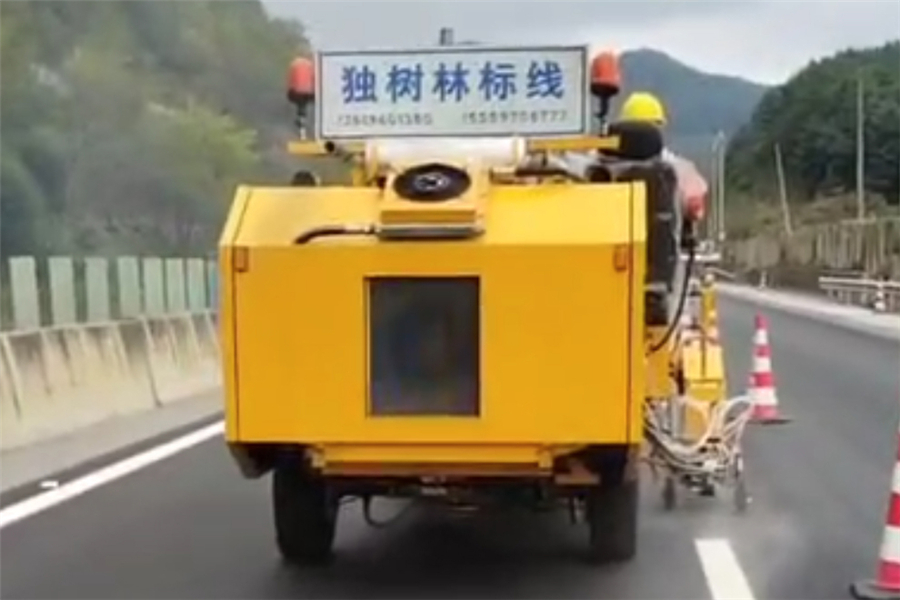

The driving type road marking machine is a kind of high-tech marking equipment with high efficiency, high marking quality, and with high safety and environment conservation. This marking equipment is available for customization of single function or multiple functions, in order to reduce customer's cost on the basis of meet customer's requirement. Currently, our line marking machines are available in several models with capacities of 100L, 200L, 300L, and 500L, which can meet various line marking needs.

Send Inquiry

Product Description

Key Features

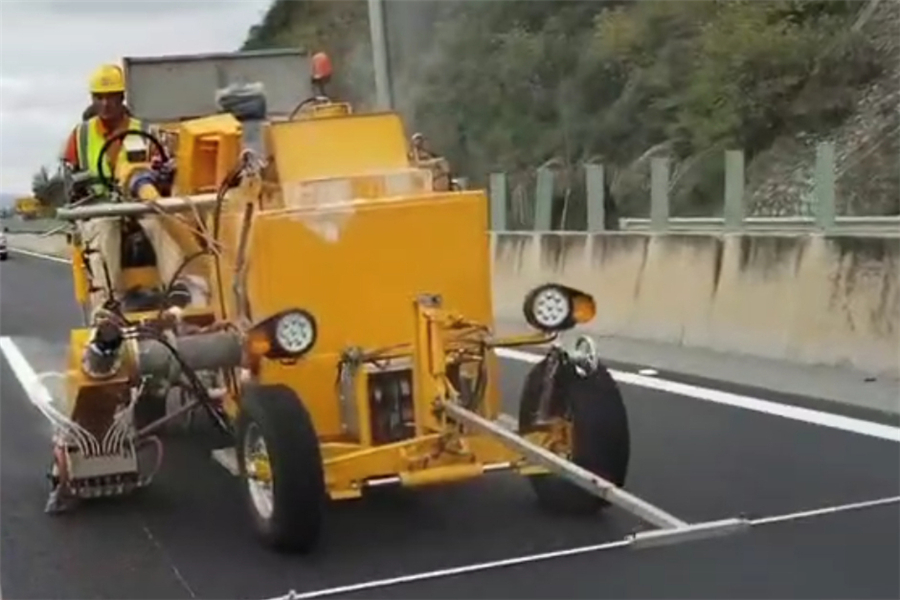

This series of hot-melt driving type marking machines adopts a platform design and can be equipped with a gravity-fed material conveying + scraping hopper marking device. It is suitable for marking flat lines and vibrating lines. By quickly changing the hopper, it can easily complete the scraping construction of flat lines or "mountain"-shaped vibrating lines.

The machine is equipped with a sliding operating device and a quick-change marking device, which can mark lines on both sides of the left side, eliminating the hassle of marking lines going in the wrong direction.

This machine can be equipped with a double glass bead tank, which not only allows for quick switching between left and right glass bead spraying, but also enables the spraying of two types of glass beads.

Technical Parameters

Model	RZG200	RZG300	RZG500
Engine	30KW Diesel engine	21KW Diesel engine	42KW Diesel engine
Driven system	Hydraulic continuously variable transmission
Driving speed	Forward speed 0-10km/h \| Reverse speed 0-6km/h
Max. climbing ability	10°	11°	15°
Marking type	Hot melt scraping leveling line
Tank capacity	200L	300L	500L
Glass bead container	100L	100L	2*75L
Heating method	LPG fuel infrared burner, thermal oil heating circulation system
Marking width	Standard for 150mm (other width as optional)
Marking depth	1.2-2.0mm (adjustable)	1.5-2.5mm (adjustable)	1.2-3.0mm (adjustable)
Overall dimensions	400019102100mm	480020502600mm	528022002540mm
Weight	300kg	280kg	3600kg

Delivery And Service

Frequently Asked Questions (FAQ)

Q1: What line types can this hot-melt marking machine apply?

This machine supports hot-melt scraping leveling line construction. By quickly changing the scraping hopper, it can apply both standard flat lines and "mountain"-shaped vibrating lines.

Q2: How does the glass bead spraying system operate?

The machine features an optional or standard double glass bead tank system. This structure enables fast switching between left and right glass bead spraying and allows simultaneous or alternative spraying of two different types of glass beads.

Q3: What models and engine options are available in this series?

We offer three main models: RZG200 ( equipped with a 30KW Diesel engine), RZG300 (equipped with a 21KW Diesel engine), and RZG500 (equipped with a 42KW Diesel engine).

Q4: What heating system is utilized for the thermoplastic material?

The equipment uses an LPG fuel infrared burner combined with a thermal oil heating circulation system to ensure uniform material heating and optimal application performance.

Q5: Are the marking width and depth adjustable?

Yes, the standard marking width is 150mm with options for custom widths. The marking depth is fully adjustable, ranging from 1.2mm up to 3.0mm depending on the chosen model.
